Sprite Sheets V1

Functionality contained within the three asset groups:
(Duplicate settings are not listed for advanced functions)


Sprite Sheet

• Basic function to transform the UV Map for use as a Sprite Sheet

Settings:

• Tile Count X/Y - The number of tiles to subdivide the image into
• Tile - The currently displayed tile portion of the image
• Sheet Length - Custom number of tiles to consider
• Top Down - The rows start in top to bottom order

Animated Sprite Sheet

• Self contained animation settings to quickly set up motion without keyframes or drivers

Time Settings:

• Rate - Duration in [Rate Mode] on how quickly the tiles switch
• Rate Mode - Seconds (Independent of framerate) / Frames (Time unit per frame) / Minecraft Ticks (1/20th of a second)
• Start Frame - Manual offset from when to start the animation
• Repeat - Number of times to loop the whole sheet (infinite, if set to 0)

Random:

• Randomize - Enable all settings to randomize the same texture being displayed in multiple locations (applies default randomization per object)
• Phase - The maximum decimal offset to apply to the start of each tile, to randomize the time when tiles switch
• Seed - The seed for all random operations
• Custom Attribute - Additional random data to use from other sources (e.g. Geometry Nodes)

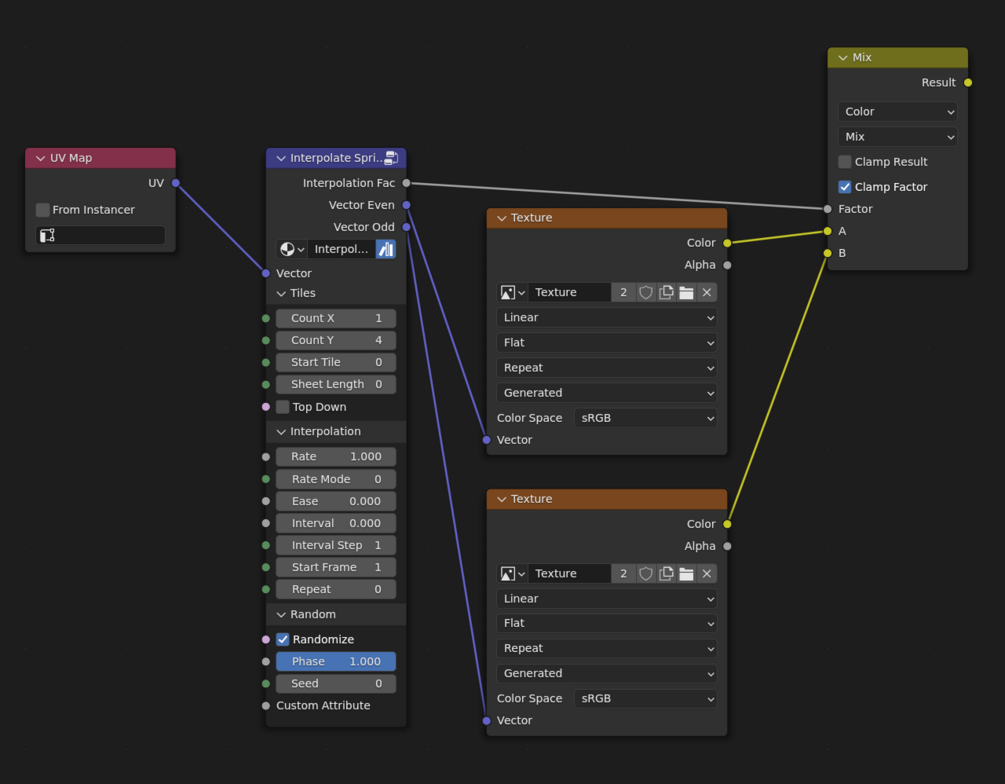

Interpolated Sprite Sheet

• Outputs two vectors to blend between the same image texture using a factor (always requires two of the same image texture node and a mix color, to ensure the interpolation)

Interpolation:

• Ease - Intensity of ease-in-out function applied to the blend. Negative values will cause the transition speed up at the start and end
• Interval - Time in [Rate Mode] to hold the current state of an image after each transition
• Interval Step - The amount of interpolations to complete before initiating the pause
